Unlocking Insights with Visual- Heatmap

In the digital age, data visualization is crucial for understanding complex datasets. Visual Heatmap, an open-source JavaScript module, emerges as a powerful module designed to render large-scale heatmaps with exceptional performance. This article delves into the functionality of Visual-Heatmap and explores how it’s revolutionizing the way we visualize data.

Github: https://github.com/nswamy14/visual-heatmap

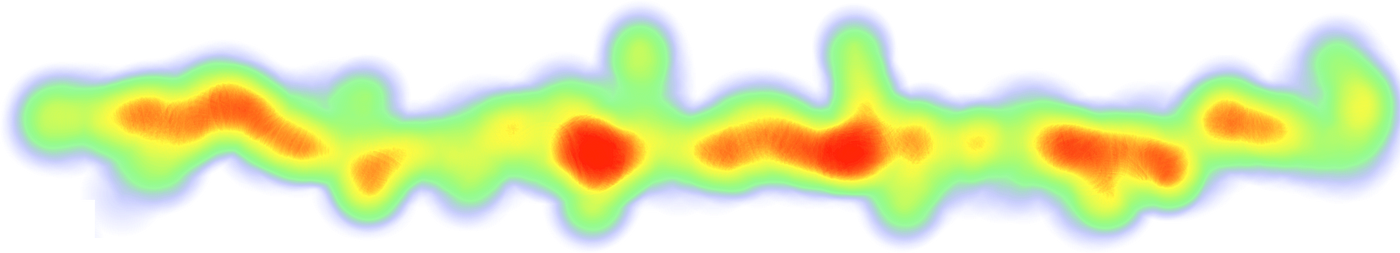

What is a Heatmap?

A heatmap is a graphical representation of data where individual values are denoted by colors. Often used to show variation across a two-dimensional surface, heatmaps make it easy to understand complex data at a glance. They are particularly useful in various fields, from geographic mapping of demographics to displaying website traffic density.

High-Performance Visualisation with Visual Heatmap

Visual-Heatmap stands out due to its ability to handle and render over 500,000 data points seamlessly. By leveraging cutting-edge WebGL/Shaders for graphical rendering, it ensures that even the most extensive datasets are displayed smoothly and interactively.

Key Features and Advantages:

High-Performance Rendering: Effortlessly manage and render vast datasets with high responsiveness.
Scalability: Capable of visualizing over 500,000 data points, making it ideal for large-scale applications.
Easy-to-Use Syntax: The module’s syntax is intuitive, making it accessible even to those new to coding.
Lightweight Module: Despite its robust capabilities, Visual Heatmap is lightweight and won’t bog down your applications.
Customizable: With a range of API options, users can tailor the heatmap to fit their specific needs, from adjusting point intensity and size to setting custom color gradients.

Installation and Setup

Installing Visual Heatmap is straightforward. Users can add it to their projects via npm with

npm i visual-heatmap --save

Or Download the source code from below GitHub repo

https://github.com/nswamy14/visual-heatmap

Visual-Heatmap is written in ES6 Modules. To import use below syntax

import Heatmap from 'visual-heatmap'

Demo

Click on the below examples:

Crafting Your Heatmap

Creating a heatmap is simplified with a primary method, Heatmap(containerId/containerElement, config). This function initiates a new WebGL heatmap layer and returns a render instance for further manipulation. The configuration options are extensive, allowing for detailed customization, including size, maximum data value, blur, opacity, and more.

let renderInstance = Heatmap('#containerId', {
        size: 30.0,
        max: 100,  // if not set, will be derived from data
        min: 0,  // if not set, will be derived from data
        intensity: 1.0,
        background: {
            url: "urlPath",
            width: 100, // if not set, viewport width of the image will be considered
            height: 100, // if not set, viewport height of the image will be considered
            x: 0,
            y: 0
        },
        gradient: [{
            color: [0, 0, 255, 1.0],
            offset: 0
        }, {
            color: [0, 0, 255, 1.0],
            offset: 0.2
        }, {
            color: [0, 255, 0, 1.0],
            offset: 0.45
        }, {
            color: [255, 255, 0, 1.0],
            offset: 0.85
        }, {
            color: [255, 0, 0, 1.0],
            offset: 1.0
        }]
    });

Interactive and Dynamic

Once instantiated, Visual Heatmap provides several API methods for dynamic interaction. Users can render data, add new data points, adjust maximum values, and apply transformations such as zoom, rotation, and translation. This interactivity ensures that the heatmap is not just a static image but a dynamic visualization tool.

instance.renderData([])

Accepts an array of data points with ‘x’, ‘y’, and ‘value’. Demo

instance.addData([], transformationIntactflag);

Accepts an array of data points with ‘x’, ‘y’, and ‘value’ and a flag to specify to apply existing canvas transformations on the newly added data points. Try an Example

instance.setMax(number)

To set max data value, for relative gradient calculations.

instance.setMin(number)

To set min data value, for relative gradient calculations.

instance.setTranslate([number, number])

API to perform translate transformation on the canvas. Accepts array[x, y] as an input. Try an Example

instance.setZoom(number)

API to perform zoom transformation on the canvas. Accepts float value as an input. Try an Example

instance.setRotationAngle(number)

API to perform rotation transformation on the canvas. Accepts angle in radians. Try an Example

instance.setSize(number)

API to set point radius. Accepts float value as an input. Try an Example

instance.setIntensity(number)

API to set the Intensity factor. Accepts float value as an input. Try an Example

instance.setOpacity(number)

API to set Opacity factor. Accepts float value as an input. Try an Example

instance.setBackgroundImage({ url: , x: , y: , height: , width: })

API to set Background image. Accepts Object with { Url, height, width, x, and y} properties as input Try Example

instance.projection({x: , y: })

Api to get projected coordinates relative to the heatmap layer. Try an Example

instance.clear()

Api to clear canvas.
